Product specifications:

The system has an array of type highly sensitive Halogen-quenched Geiger-Mueller tube, with an area of 2 square meters and a detection range of 10 meters;
The system is designed to prevent dust and rain, which can be used in the field and harsh environment;
The system has built-in high-capacity lithium battery; in the case of without external power supply, it still can work continuously for more than 48 hours;
This system has built-in true color LCD display, which is convenient for system installation and debugging and for the staff to observe the data;
This system can be equipped with an industrial computer, which can be used to display real-time detection data and relevant ICONS;
This system can store 30,000 records; when the alarm occurs, the data is automatically stored;
Built-in sound and light alarm system;
Built-in temperature detection system, the system has temperature correction function for the accuracy of radiation detection;
The system has a variety of network interfaces: RJ45 port, WiFi, and GPRS.

Product specifications-Probe:

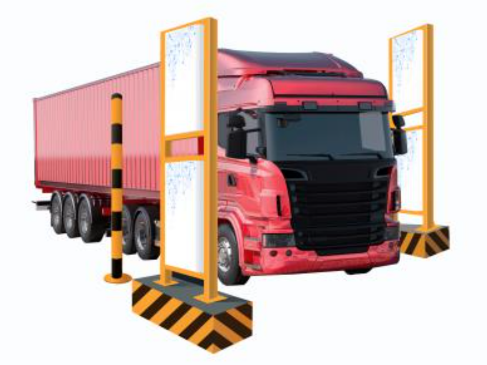

System dimension: gantry rectangle, 2.56 meters long, 1.35 meters wide, and 0.25 meters thick
Corresponding energy of the system: 10ke~3mev
Maximum speed allowed by the system: 40 km/h
Measurement unites supported by the system: CPS、CPM、uSv/h、nGy/h
Radiation sensor type: Highly sensitive Halogen-quenched Geiger-Mueller tube, Si+PM semiconductor sensor, with an area of 2 square meters
Temperature sensor types: Semiconductor
Lithium battery capacity: 4800mAh
Alarm db: 85db
LED alarm lamp: High lighting and waterproof
Power charging lamp: High lighting and waterproof
Work indicator light: High lighting and waterproof
Measurement algorithm: Pulse counting method and pulse period method, switching automatically according to the measurement unit
Alarm range: 0.001uSv/h～999.999uSv/h, 1CPS～2000000CPS, the alarm range can be set arbitrarily
Ambient temperature detection range: -20℃～80℃
Network interface protocol: TCP/IP protocol
Power supply: 5V/1A
Standard industrial mainframe
