SMART IoT Probe (Radiation Probe) (N-G1+), also known as All-Match Probe

Product information:

The SMART IoT Probe (Radiation Probe) (N-G1+), also known as All-Match Probe, is made of built-in Russian military grade metal sensor and both of its sensitivity and measuring range are high. It can quickly detect the intensity of hard β, γ and Χ ray. At the same time, the shell of the probe is made of metal materials with industrial grade design, so the probe has a certain level of protection, explosion-proof, high temperature resistance, humidity and heat resistance, to be able to work in a harsh environment and provide good protection for the internal components.

The probe can be used alone, or used with industrial mainframe to build a small real-time online nuclear radiation detection system to provide a centralized monitoring of radioactive hazards in fixed sites (such as hospitals, nuclear power plants, schools, customs, airports, enterprises involved in radioactive sources etc.). In addition, it can provide dragnet monitoring for large conferences and public places to replace inspection equipment, to avoid the inconvenience caused by manual detection.

Details
Specification
Video

Product specifications:

The unit is complete;
Rich interface, can arbitrarily combine more than 2 kinds of interfaces to meet customer customization;
Built-in storage: large capacity storage of 15,000 records, automatic cyclic covering;
Real-time clock: RTC clock, the time will not be lost after the power-off. It provides time stamps for abnormal events and data storage;
Ultra-low power consumption: static power consumption of 20mAh;
Built-in watchdog: whenever the hardware or software is abnormal, the watchdog will reset the probe;
High range, high sensitivity, high precision.

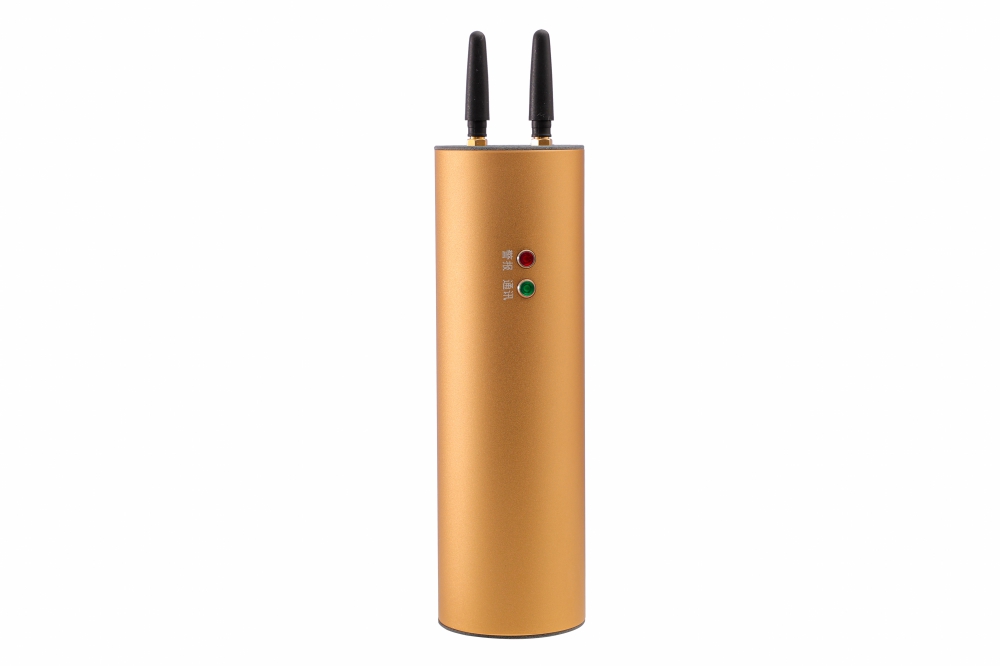

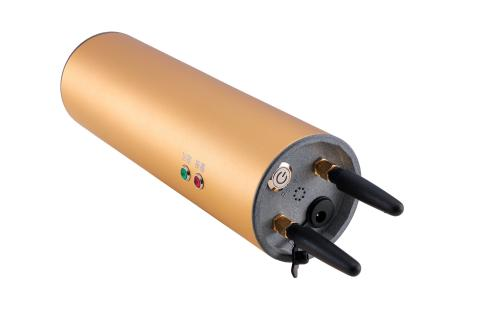

Product specifications-Probe:

Size: Length 20cm, Diameter 5.5cm
Weight: 400g
Measuring range: 0.01μSv/h~1Sv/h
Temperature Range: -10℃～+50℃、Relative humidity (at 40℃)≤95%
Energy response: 40KeV~5MeV
Type of rays measured: X、γ、hard β
Displayed unit: CPS、CPM、nGy/h、uGy/h、uSv/h、mSv/h

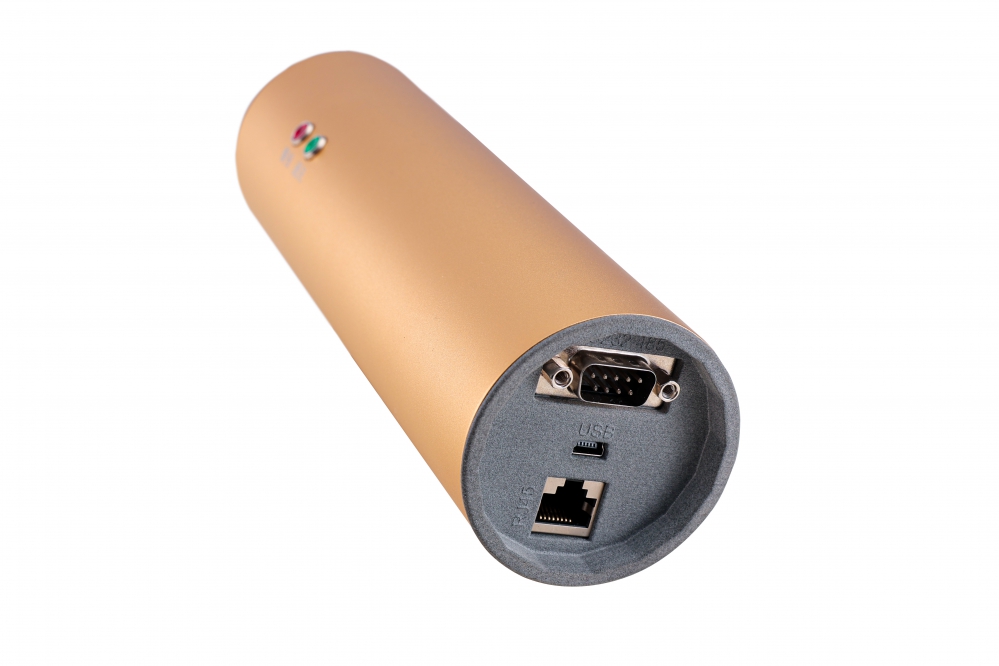

Interface types: RS232/485、RJ45、WiFi、4G、Bluetooth、UART (TTL 3.3V)
Built-in rechargeable lithium: 2600mAh can work for 48 hours after power-off
External power supply: DC 5V/1A (5.5*2.5)
Built-in alarm: alarm LED flashing, alarm sound, external sound and light alarm can be hung

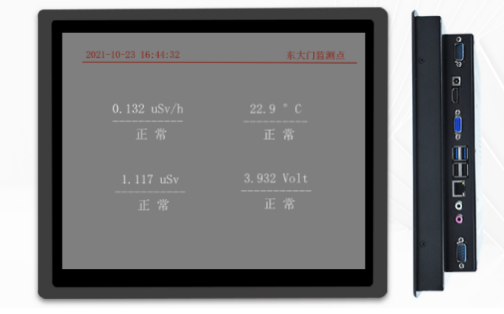

Product specifications-Industrial mainframe:

System parameters:

CPU: Intel Celeron/core
Hard disk: 32G SSD solid-state drives
Memory: 2G DDR3
Graphics: Integrated graphics
Audio: Integrated audio chips
System: Windows 7 pre-installed
Touch type: Resistance/capacitance
Touch life: Resistance >3500 million times, Capacitance >5000 million times
Number of probes: 1 industrial mainframe supports up to 16 probes at the same time to display real-time multiple parameters: dose rate (equivalent), cumulative dose, ambient temperature, operating voltage
Forward data: The remote server (target IP address)
Data store: 1 to 16 routes
The last cycle: Minimum 1 second (configurable)
Storage period: Minimum 1 second (configurable)
Font size: Can be defined
Alarm sounds: Can be defined

Display parameters:

Colour: 16.7M
Distance: 0.264mm
Panel type: Control panel
Contrast ratio: 1000:1
Display brightness: 400cd/m²
Display angle: Horizontal 160°/vertical 160°
Backlight type: LED backlight panel
Backlit life: ≥50000h

Interface parameters:

USB interface: USB2.0*4
Serial interface: COM*2 default RS232 agreement
Expansion interface: VGA*1
Definition interface: HDMI*1
Router interface: RJ-45*1
Power interface: DC power*1
Audio interface: Audio I/O
Parallel port interface: LTP print interface (add)

Electricity parameters:

Material: The shell is made of metal
Colour: Black by default (customizable)
Warranty policy: 3-years warranty
Power supply: 12V-5A, external power adapter
Power supply performance: 100-240V 50-60Hz
Maximum power consumption: ≤60W
Storage temperature: 20°-60°
Working temperature: -10°-60°
